1 Channel USB 5V or AC 85-250V Smart WiFi Wireless Relay Switch Module,Tuya Smart Life app Remote Control,Compatible with Alexa Google Home (1CH 85-250V)
Product details
| Management number | 234138856 | Release Date | 2026/06/27 | List Price | $5.44 | Model Number | 234138856 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

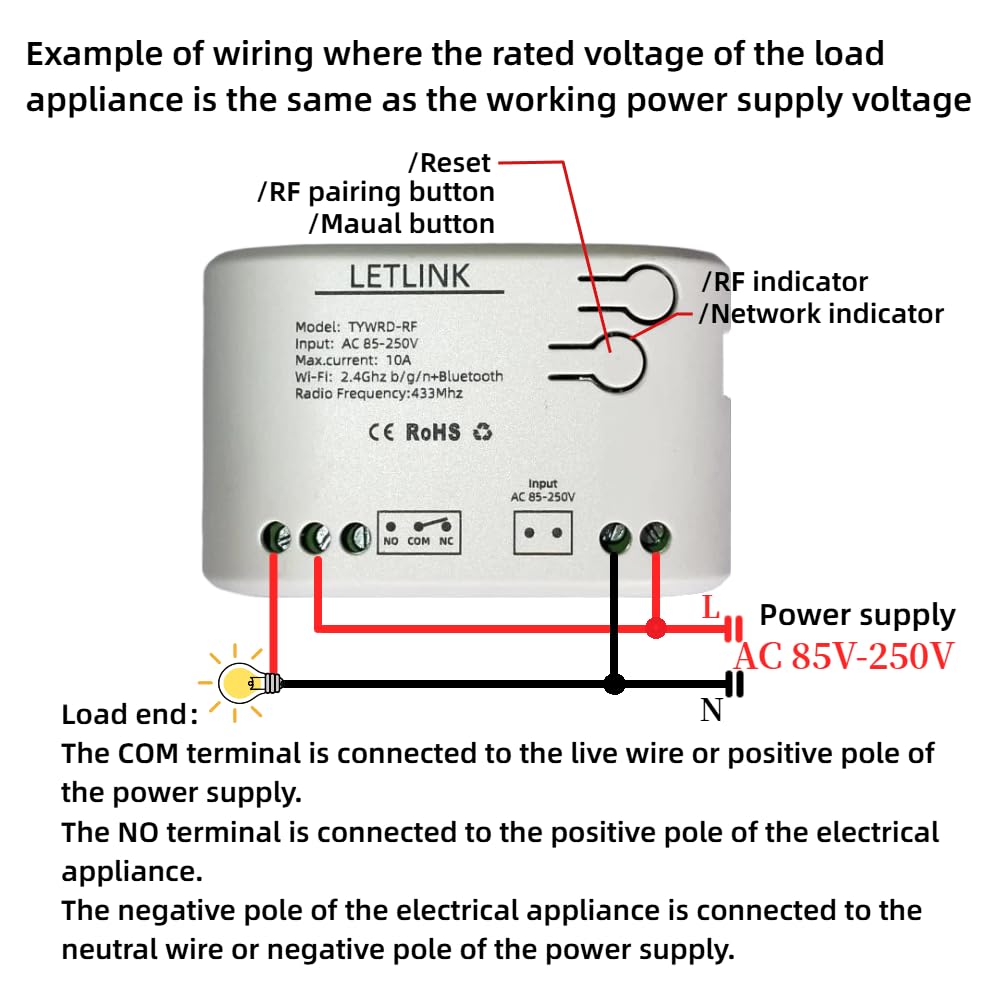

1 channel Smart life/Tuya app wifi Relay support 2.4G WIFI only,if your router with dual bands and same SSID,please close 5G firstly.Usually once the relay was powered on,light will flash quickly,it will go to quick pairing mode automatically,no need to long press the pairing button,tap + in smart life app,it will find your SSID,enter the correct password of your wifi network.Please make sure to put the relay close to your router and your phone have to connect to the same 2.4G WIFI when pairing.If it doesn't work.please long press the pairing button until light slowly flash,configure it with compatible mode.The WIFI Relay Module supports inching /self-locking mode and extra 433mhz RF function.Users can add the device to the Smart life/Tuya APP to remote control connected home appliances or devices.In self-locking mode, customers can remotely turn on/off connected devices immediately.When in inching mode, customers can have two wiring ways to select:Turn on 1s and then auto-offTurn off 1s and then auto-on.This product Compatible with Alexa.The relay work as button, without voltage output, the power supply input (AC/DC) just for the PCBAThe product enables remote control of home appliances through the mobile application Smart life, available on both Android and iOS. Supported functions include:Remote turn on/offTiming schedulesDevice sharingGroup management
- 1 channel Smart Life wifi relay module，WIFI Smart life tuya app remote&Voice control&Bluetooth control,automate your garage door light with Alexa Google home,with ABS case included
- Easy to setup,add Smart WIFI control to your home,support 2.4G wifi only,once powered on,your phone bluetooth will find it asap,tap to configure with Smart life app directly
- Widely Usage,Google home relay,default is WIFI app remote,to active bluetooth control,disconnect wifi for the relay,self locking(on/off) inching (momentary) mode adjustable.Tuya relay is dry contact,without voltage in output,it works as wireless button in inching mode,as wireless switch in self-lock latching mode
- Schedule Timing function and share control,create schedule smart scenes,support countdown/sunrise/sunset/loop timer,happy share control with family
- Voice control,work with alexa assistant Ifttt Nest,use your voice command control when busy
| ASIN | B0DF69THD7 |
|---|---|
| Model | 1CH 85-250V |
| Wattage | 1000 watts |
| Brand Name | LETLINK |
| Item Weight | 0.1 Pounds |
| Part Number | 1CH 85-250V |
| Coil Voltage | 250 Volts |
| Contact Type | Normally Open |
| Manufacturer | Baolan electronic Technology Co., LTD |
| Connector Type | Screw |
| Current Rating | 10 Amps |
| Operation Mode | ON-OFF |
| Contact Material | Copper Alloy |
| Included Components | 1 x Jog Inching Self-locking WiFi Wireless Smart Switch |
| Warranty Description | Three months |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 250 Volts (AC) |
